Home Weighing Scale

Weighing Scale

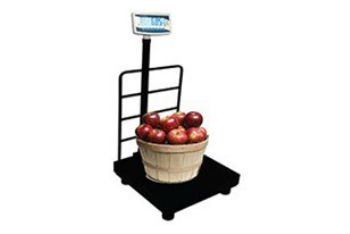

AWB Platform Scale and Indicator

The AWB Platform Scale can be powered by either the internal rechargeable battery or via an external power adapter for locational flexibility. The display has a low battery warning light to prevent it from powering down. The weight indicator features a backlit display which is large and easy to read. The display is mounted on a pillar with tilt and swivel bracket for greater visibility.

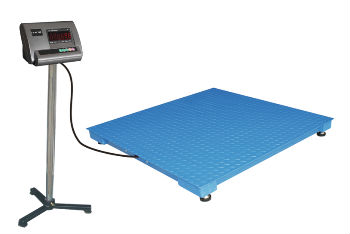

Heavy Duty 4 Load Cell Scale

We offer our customers with an optimum grade 4 Load Cell Heavy Duty Scale that is developed using the top grade equipments, latest technology and raw material in accordance with the defined industry values.

  • • High resolution upto 15,000 counts.
  • • Easy to read (0.56”) Bright LED / LCD display.
  • • Rugged construction suitable for Industrial application.
  • • MOC : MS Heavy Duty Powder Coated
  • • Environmentally protected load cells IP67 Class
  • • Auto-off Function for power saving.
  • • Safety overload 150% of the scale capacity.
  • • Dust Resistance Membranes key.
  • • Power AC 220V + 10% 50-60 Hz.
  • • Built-in rechargeable battery for continuous use.

MS Platform Scale

Model CTG 1T4 CTG 1.5 T 4L CTG 2T4 CTG 3T4 CTG 5T4 CTG 5T4
Capacity 1 Ton 1.5 Ton 2 Ton 3 Ton 5 Ton 5 Ton
Readability 100 g 200 g 500 g 1 Kg 1 Kg 1 Kg
Platform Size (mm) 1000 x 1000 1200 x 1200 & 1500 x 1500 1200 x 1200 & 1500 x 1500 1200 x 1200 & 1500 x 1500 1200 x 1200 & 1500 x 1500 2000 x 2000

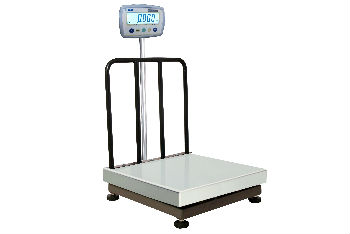

CTG Series Platform Scale

Leading Manufacturer of Trolley Scale, Heavy Duty Platform Scale - MS, IP 67 Protected Stainless Steel 304 Platform Scale, Ultra Low Profile Platform 4 Load Cell Scale, SS Ultra Low Profile Platform 4 Load Cell Scale and SS Heavy Duty Platform Scale from Mumbai.

    STANDARD FEATURES

  • • High resolution upto 15,000 counts.
  • • Easy to read (0.56”) Bright LED / LCD display.
  • • Net/Gross Function.
  • • Built-in rechargeable battery for continuous use.
  • • Optional remote display available for customer.
  • • Environmentally protected load cell IP67. “CTP/CKG” Counting Indicator
  • • Rugged construction suitable for Industrial environment.
  • • Single Load Cell Type with IP 67 Class Load cell.
  • • Power AC 220V + 10% 50-60 Hz & with built-in rechargeable battery backup

    Optional

  • • RS 232C Interface
  • • Built In Printing Indicator available on request.
  • • 4-20 mA Facility, Set point facility.
  • • (A Type) MS Roller Ramp Available Version for special industrial application.
  • • Piece Counting Facility (Model CKG Series)
  • • Flame Proof Indicator are certified by CIMFR, Dhanbad for use in Hazardous area.

MS Platform Scale

Model CTG 50B CTG 60 CTG 60 CTG 100 CTG 200 CTG 300 CTG 500 CTG 500 CTG 1000
Capacity 50 Kg 60 Kg 60 Kg 100 Kg 200 Kg 300 Kg 500 Kg 500 Kg 1000 Kg
Readability 5 g 5 g 10 g 10 g 20 g 20 / 50 g 50 g 100 g 200 g
Platform Size (mm) 400 x 400 400 x 400 500 x 500 600 x 600 600 x 600 600 x 600 600 x 600 750 x 750 1000 x 1000

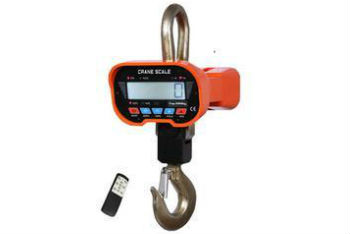

Crane Scale

Crane Dynamometers are engineered to help weigh heavy objects with cranes. They feature digital operation, and are available with corded or wireless remote controls to help change units or zero and tare out weight from a safe distance.

    STANDARD FEATURES

  • • Rugged Heavy duty design, cast Aluminium alloy housing.
  • • Remote control - On/Off, Change, Zero,Hold.
  • • Heat shield - 100ºCto 1600ºC at distance of approx. 2.5 mtr.

      • Construction

    • • High special safety construction Load cell design to protect damage overload
    • • Load Cell connects to upper ring & Bottom Hook, with Non-screw safety design to prevent loosen or breakage .
    • • Easy operated wireless remote control.(distance 15m approx)

      Function

    • • ON/OFF, Change, Zero Set
    • • Display : 5 digit, 1.2” RED LED
    • • Zero Range : 4%FS.
    • • Max Safety Load : 250%FS.
    • • Ultimate load : 500%FS.
    Model HA 300 HA 600 HA 1T HA 2T HA 3T HA 5T HA 10T HA 15T HA 20T HA 30T HA 50T
    Capacity 300 kg 600 kg 1 Ton 2 Ton 3 Ton 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton 50 Ton
    Display Rechargeable Battery 6V / 10Ah, Approx 100 Hours Backup Time.
    Power Supply AC 230V + 10% 50-60Hz


Shipper Scale

We offer our customers with an optimum grade 4 Load Cell Heavy Duty Scale that is developed using the top grade equipments, latest technology and raw material in accordance with the defined industry values.

    STANDARD FEATURES

  • • Interface to Label / Dot Matrix Printers / Scanner.
  • • Weighing Scale / Data Processing Capacity.
  • • Report for Bill Summary / Weighments for day.
  • • 5000 Shipper Memory, Upgradeable to 20,000.
  • • Master - Product, Customer, Brands.
  • • Dispense Mode / Shipper Mode Slips.
  • • Real Time Clock with Backup support.
  • • Check Weighing / Counting Accumulation modes.
  • • Fully programmable with front Panel.
  • • Labels support for Shipper with Barcoding.
  • • 500,000 Counts Internal / Up to 50,000 external.
  • • Bi Directional RS 232 / USB for data output.
  • • Export Data to Pen Drive Excel Format

MS Platform Scale

Model CTG 60SS CTG 150SS CTG 200SS CTG 300SS CTG 500SS
Capacity 50 Kg 150 Kg 200 Kg 300 Kg 500 Kg
Readability 5 / 10 g 10 g 20 g 20 / 50 g 100 g
Platform Size (mm) 500 x 500 / 19.7” x 19.7” 600 x 600 / 23.6” x 23.6” 600 x 600 / 23.6” x 23.6” 600 x 600 / 23.6” x 23.6” 600 x 600 / 23.6” x 23.6” 600 x 600 / 23.6” x 23.6”

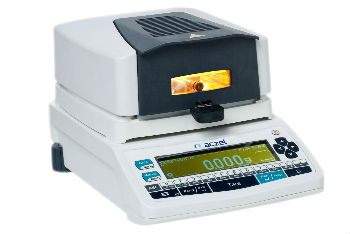

Moisture Analyzer Balances

ACZET’s New MB Series Moisture Analyzer With HALOGEN Heating is mainly Designed on the basis of Time Saving Factor for universal use in Chemical, Pharmaceutical, Oil, Petroleum Industries also in Material Testing & Environmental Laboratories & in Sewage Treatment Plants.
MB Series is compact in shape & big in performance. It performs all the major Functions of routine moisture analysis with following features.

    STANDARD FEATURES

  • • Data memory up to 1000 data
  • • Data can be divided in to 40 methods or 100 batchs
  • • User can avail Statistic method or batch wise
  • • Facility of compile two method
  • • PS2 Key Board connectivity make it very user friendly operation.
  • • Password protection prevent unauthorized use of the important setting
  • • 4 user ID configurable
  • • ISO/GLP calibration report for weight and temperature, also last successfully calibration report can be avail any time form the memory
  • • Alpha numeric keypad makes it easy to enter method name
  • • Weight in assist helps user to do accurate measurements
  • • Facility to add any insolvent before actual drying
  • • Possible to configure stand by temperature between 30º C to 175º C
  • • Highly flexible display for changing font, background and contrast
  • • User configurable print interval during the moisture determination
Model MB 54 MB 40 MB 50 MB 120 MB 200
Max capacity 50 Kg 40 Kg 50 Kg 120 Kg 200 Kg
Precision of readout mass 0.1mg 1mg 1mg 1mg 1mg
Precision of readout of moisture 0.0001% 0.001% 0.001% 0.001% 0.001%
Repeatability (Sample 2g) (sd) 0.05% 0.1% 0.1% 0.1% 0.1%
Repeatability (Sample 10g) (sd) 0.02% 0.03% 0.03% 0.03% 0.03%
Display information % moisture %of dry sustance diagram graph ratio, % Atro moisture % Atro Dry, %gm/ltr

Range of temperature of drying Max to 175ºC (option to 250ºC)
Maximum time selection 999.9 min.
Set temperature Interval 1ºC
Software of drying Standard, Rapid, Step, Gentle & High Temp.
Auto options-turn off Automatic, Manual timed, User DEF G/T, User DEF % U/T, Intelligent
Menu language English
Transfer of data RS 232 / USB / Ethernet
Pan Size (mm/inch) 95Ø mm / 3.8”Ø
Display Backlite Graphical LCD Display
Temperature of work 15ºC to 40ºC
Tare Rage Full Capacity
Voltage of power supply 110, 220-230V / 50-60Hz
Net Wt. / Gross Wt. 7 kg / 8 kg
Packing Size (mm/inch) 400 x 340 x 300 / 15.8” x 13.4” x 11.9” (L x W x H)

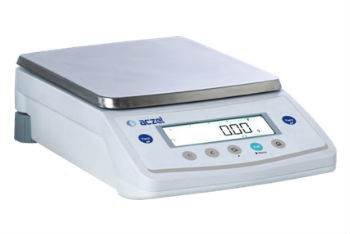

Top Pan Precision Balances

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards. High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions. When the ambient temperature changes by a specific value or once a defined time interval has elapsed, it performs Internal Calibration.

CY-C Series Top Pan Precision Balances

Model CY 1202 C CY 2202 C CY 3102 C CY 4102 C CY 6102 C CY 8102 C
Maximum Capacity 1200 gm 1200 gm 1200 gm 1200 gm 1200 gm 1200 gm
Minimum load 500 mg 500 mg 500 mg 500 mg 500 mg 500 mg
Readability 0.01 gm 0.01 gm 0.01 gm 0.01 gm 0.01 gm 0.01 gm
Repeatability (sd) 0.01 gm 0.01 gm 0.01 gm 0.01 gm 0.01 gm 0.01 gm
Linearity (+/-) 0.02 gm 0.02 gm 0.02 gm 0.02 gm 0.02 gm 0.02 gm
Tare Range (Subtractive) -1200 gm -1200 gm -1200 gm -1200 gm -1200 gm -1200 gm


USP Minimum Weight 10 gm
Pan Size (mm) 198 x 205
Response Time 2 - 3 Sec.
Display Alpha Numeric Backlite LCD Display
Calibration Motorised Internal Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 15º to 35ºC
Sensitivity Drift. ± 1ppm (1 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication).
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc.
Power Supply DC Adaptor,input 100 ~ 240 0.8A output 13V / 15.A, 50-60Hz
Compliance ISO, GLP / GMP & USP
Balance Size (W x D X H) mm 342.5 x 212 x 89.5
Weight Approx 6.8 kg

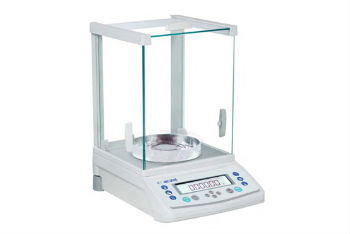

Semi Micro Balances

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards. High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions. When the ambient temperature changes by a specific value or once a defined time interval has elapsed, it performs Internal Calibration.

CY-C Series Top Pan Precision Balances

Model CY 85C CY 165C CY 265C CY 285C CY 205C CY 225C CY 255C
Maximum Capacity 80 g 100 / 160 g 60 / 220 g 80 / 220 g 200 g 220 g 250 g
Minimum load 1 mg 1 mg 1 mg 1 mg 1 mg 1 mg 1 mg
Readability 0.01 gm 0.01 / 0.1mg 0.01 / 0.1mg 0.01 / 0.1mg 0.01 gm 0.01 gm 0.01 gm
Repeatability (sd) 0.02 mg 0.02 / 0.1 mg 0.02 / 0.1 mg 0.02 / 0.1 mg 0.03 mg 0.03 mg 0.03 mg
Linearity (+/-) 0.04 mg 0.05 / 0.2 mg 0.04 / 0.2 mg 0.04 / 0.2 mg 0.07 mg 0.07 mg 0.05 mg
Tare Range (Subtractive) -80 g -100 / 160 g -60 / 220 g -80 / 220 g -200 g -220 g -250 g


USP Minimum Weight 20 mg
Pan Size (mm) 80Ø Grid pan
Response Time 5 - 8 Sec
Display Alpha Numeric Backlite LCD Display
Calibration Motorised Internal Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 15º to 35ºC
Sensitivity Drift. ± 1ppm (1 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc
Power Supply DC Adapter, input 100 ~ 240 0.8A output 13V / 1.5A, 50 / 60Hz
Compliance ISO, GLP / GMP Compliance
Balance Size (W x D X H) mm 342.5 x 212 x 341 / Chamber Height : 228.5)
Weight Approx 8 Kg / 9.3 kg

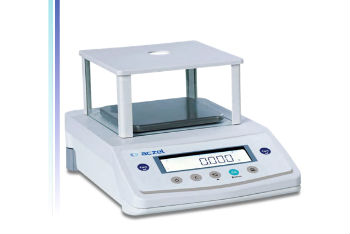

Precision Balances

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards. High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions. Automatic setting up of the balance accuracy. External test weight required

Model CY 623 CY 723 CY 1003 CY 2003 CY 3003
Maximum Capacity 620 gm 720 gm 1000 gm 2000 gm 3000 gm
Minimum load 20 mg 20 mg 20 mg 20 mg 20 mg
Readability 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm
Repeatability (sd) 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm
Linearity (+/-) 0.002 gm 0.002 gm 0.002 gm 0.002 gm 0.002 gm
Tare Range (Subtractive) -620 gm -720 gm -1000 gm -2000 gm -3000 gm


USP Minimum Weight 1gm
Pan Size (mm) 128 x 128
Response Time 2 - 3 Sec.
Display Alpha Numeric Backlite LCD Display
Calibration External Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 15º to 35ºC
Sensitivity Drift. ± 1ppm (1 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication)
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc
Power Supply DC Adaptor,input 100 ~ 240 0.8A output 13V / 15.A, 50-60Hz
Compliance ISO, GLP / GMP & USP
Balance Size (W x D X H) mm 342.5 x 212 x 341 / Chamber Height 81
Weight Approx 7.5 kg

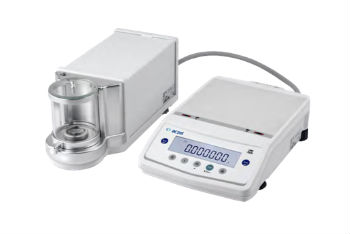

Micro Balances

Micro Balance consists of two components - one containing the electronics and the other, the precise mechanical measuring cell, This separation eliminates the effects of temperature and the influence it has on the microbalance scale. High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions. Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.

Model UCM 2A CM 2 CM 5 CM 6 CM 11 CM 21 CM 31
Maximum Capacity 2 gm 1 µg 1 µg 1 µg 1 µg 1 µg 1 µg
Repeatability (sd) 0.3 µg 0.7 µg 1 µg 1 µg 1.2 µg 1.2 µg 2 µg
Linearity (+/-) 1.5 µg 3 µg 5 µg 5 µg 6 µg 7 µg 8 µg
Tare Range (Subtractive) -2 gm -2 gm -5 gm -6 gm -11 gm -21 gm -31 gm
USP Minimum Weight 0.5 mg 2 mg 2 mg 2 mg 2.4 mg 2.4 mg 4 mg


Pan Size (mm) 15Ø ~ 30Ø
Response Time 8 - 10 Sec
Display Alpha Numeric Backlite LCD Display
Calibration Motorised Internal Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 18º to 30ºC
Sensitivity Drift. ± 1ppm (1 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication)
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc
Power Supply A/C Adaptor 230V or 115V / +/-20% 50-60Hz
Compliance ISO, GLP / GMP Compliance
Balance Size (W x D X H) mm Mechanical Box : 360 (L) x 140 (W) x 146 (H) Electronic Box : 240 (W) x 210 (D) x 65 (H)
Weight Approx 10.20 / 14.70 kg

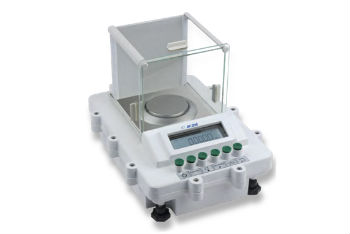

Flame Proof Balances

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards. Capacity tracker built into display for easily monitoring possible overloads. Atmospheres containing hydrogen, gases or vapors of equivalent hazard, such as manufactured gas.

Model CY 224F-C CY 224F CY 223F CY 323F CY 513F CY 3102F CY 4102F CY 6102F
Maximum Capacity 220 gm 220 gm 220 gm 320 gm 510 gm 3100 gm 4100 gm 6100 gm
Minimum load 10 mg 10 mg 20 mg 20 mg 20 mg 500 mg 500 mg 500 mg
Readability 0.1 mg 0.1 mg 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm
Repeatability (sd) 0.1 mg 0.1 mg 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm
Linearity (+/-) 0.2 mg 0.2 mg 0.002 gm 0.002 gm 0.002 gm 0.02 gm 0.02 gm 0.02 gm
Tare Range (Subtractive) -220 gm -220 gm -220 gm -320 gm -510 gm -3100 gm -4100 gm -6100 gm
USP Minimum Weight 160 mg 160 mg 1 gm 1 gm 1 gm 82 gm 82 gm 82 gm
Pan Size (mm) 90 Ø 90 Ø 128 x 128 mm 128 x 128 mm 128 x 128 mm 198 x 205 mm 198 x 205 mm 198 x 205 mm


Response Time 2 - 3 Sec.
Display Alpha Numeric Backlite LCD Display
Calibration Internal/External Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 15º to 35ºC
Sensitivity Drift. ± 2ppm (2 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication)
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc
Power Supply DC Adaptor,input 100 ~ 240 0.8A output 13V / 15.A, 50-60Hz
Compliance ISO, GLP / GMP & USP
Balance Size (W x D X H) mm 517 x 302 x 130
Weight Approx 16.3 kg

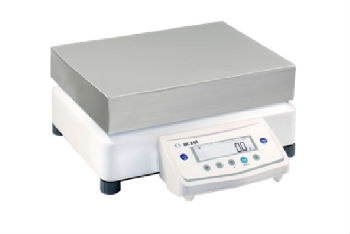

Industrial Precision Balances

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards. Durable construction with metal base, ABS housing, and large stainless-steel weighing pan allows quick cleaning. Level indicator and adjustable feet ensure proper balance setup High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions.

Model CY 15001HC CY 20001HC CY 25001HC CY 35001HC CY 50000HC
Maximum Capacity 15 kg 20Kg 25 kg 35 kg 50 kg
Minimum load 10 mg 10 mg 10 gm 10 gm -
Readability 0.1 gm 0.1 mg 0.1 gm 0.1 gm 1 gm
Repeatability (sd) 0.1 gm 0.1 mg 0.1 gm 0.1 gm 1 gm
Linearity (+/-) 0.2 mg 0.2 mg 0.2 gm 0.2 gm 2 gm
Tare Range (Subtractive) -15 kg -20 kg -25 kg -35 kg -50 kg
USP Minimum Weight 82 gm 82 gm 82 gm 82 gm 820 gm


Pan Size (mm) 370 x 260
Response Time 2 - 3 Sec.
Display Alpha Numeric Backlite LCD Display
Calibration Motorised Internal Calibration
Units of measure gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp. 15º to 35ºC
Sensitivity Drift. ± 2ppm (2 x 10-6 / ºC)
Interface RS 232C Optional USB (Windows direct communication)
Application Modes PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc
Power Supply DC Adaptor,input 100 ~ 240 0.8A output 13V / 15.A, 50-60Hz
Compliance ISO, GLP / GMP & USP
Balance Size (W x D X H) mm 517 x 302 x 130
Weight Approx 16.3 kg
@2017 Industrial Engineering Equipments. All Rights Reserved.
Designed & Developed by Web World Multi Media
